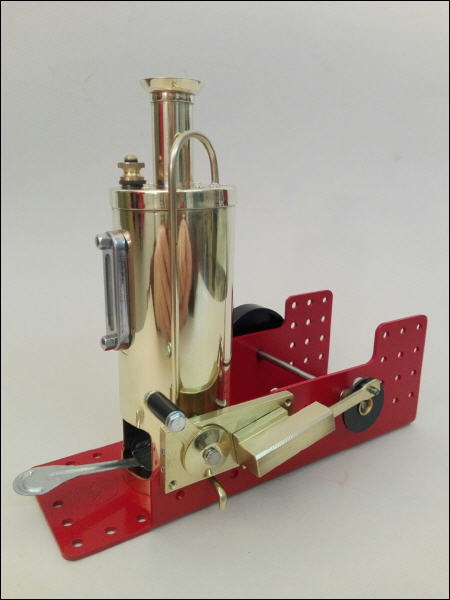

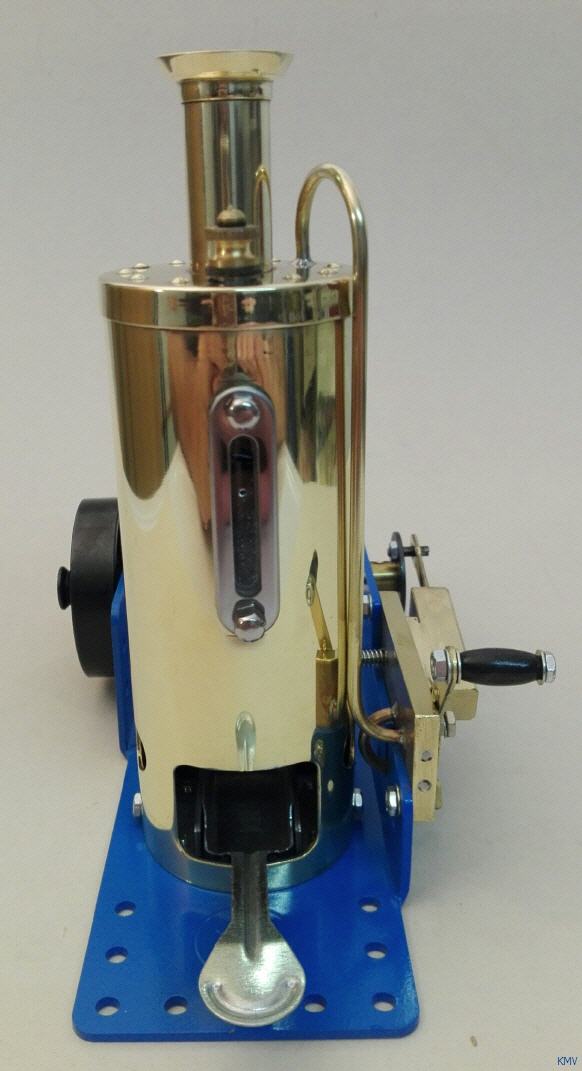

Vertical Engineers Engine

- Polished brass boiler with a flame tube built into the boiler to improve efficiency and for exhaust, diameter 50mm, length 125mm, spring-loaded safety valve
- Boiler with overflow plug and brass chimney
- Machine with reversal, running in both directions, adjustable speed
- Steam exhaust at the side
- Oscillating brass cylinder, milled out of one piece, with brass piston
- Metal base plate, made of 2mm (0,08") strong steel sheet, finely red painted, other colours possible
- Base plate with holes for construction sets, distance 1/2"
- Steel flywheel with pulley groove, diameter 53mm (2"), finely turned, burnishes
- Burner tray coined/pressed for dry spirit tablets (Esbit)
- Steam engine suitable for most construction sets, like Meccano, Märklin or Stokys

Base: 190mm x 70mm
Height: 170mm
Boiler contents: 130ml
Weight: 900g

Accessories: Funnel, condensing cup, plastic tubing, dry spirit tablets, oil, spare gaskets, instructions


Back

Steam engine for metal construction sets

Forward




Price : Vertical Engineers Engine 145,- €
Boxed with accessories
